A wide variety of fitting variations are available, allowing you to set the position of posts and the length and angle of beams.
This covers a variety of site shapes, from sites with wide frontages to irregular sites such as L-shapes.

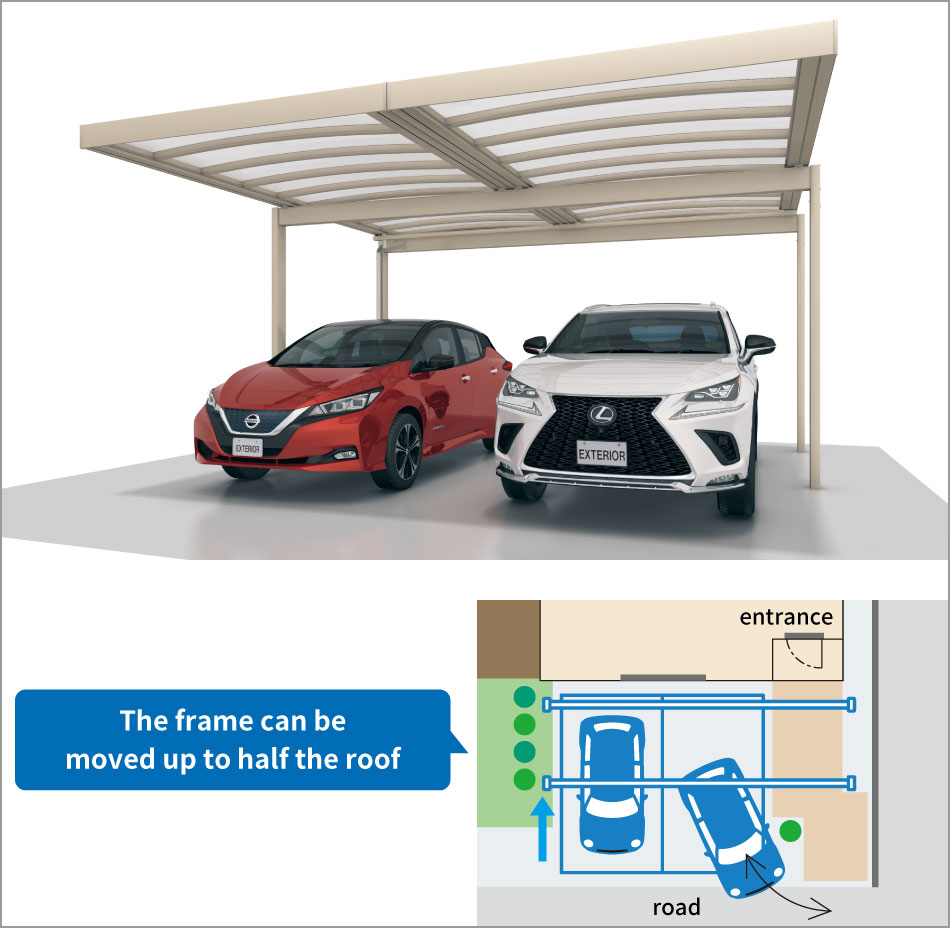

Offset frame installation
The frame can be moved up to half the roof. Moving the frame position to the back improves visibility from the car and makes it easier to get the car in and out.
●Not compatible with one side post stand type and both sides post stand type DF100, 120, H35 (34) sizes, 50cm snow load resistance specifications, and Select line roof (lattice under beam type).

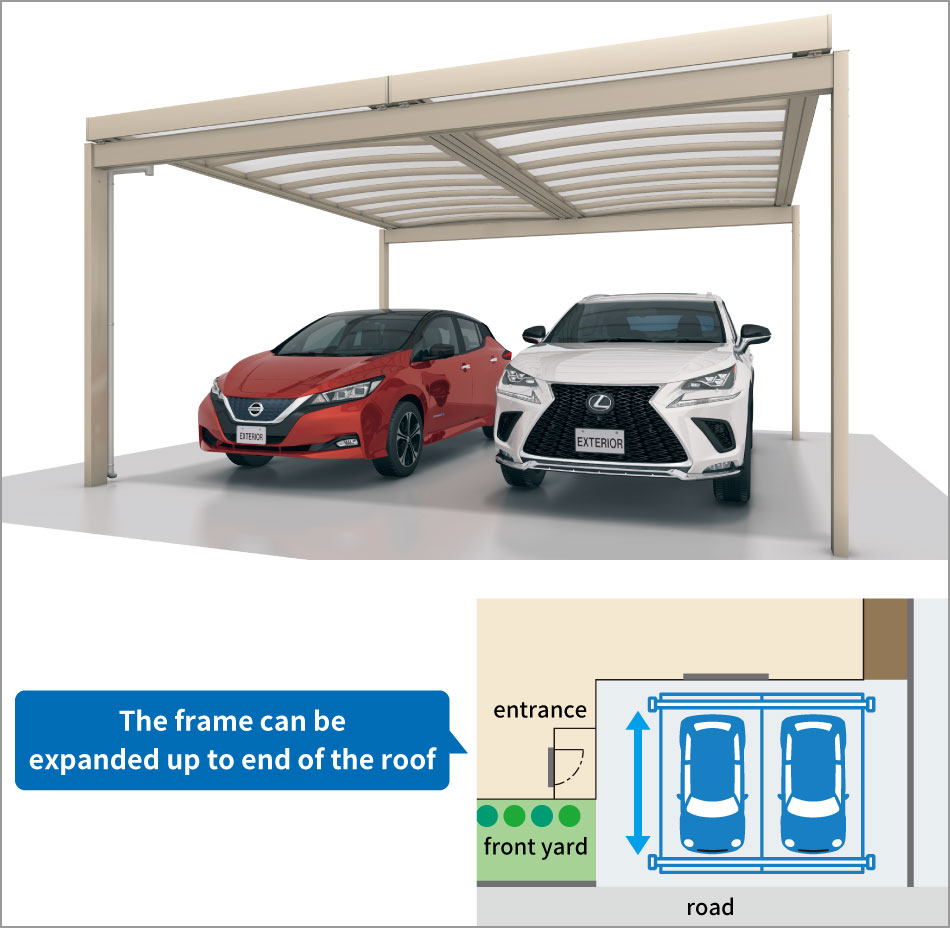

Both ends frame installation
The frame can be moved up to the both ends of the roof. This gives the impression of a spacious car space, making it easier to get in and out of the car, and also makes it easier to move around to the entrance or front yard.
●Not compatible with one side post stand types, length size 30, 50cm snow load resistance specifications, and Select line roof (lattice under the beam).
L-shaped installation (Offset frame + parallel installation)
L-shaped installation is possible with 4 posts. The roof is installed parallel to the frame, and combined with the offset frame installation, an L-shaped car space is created. There are no posts blocking the entrance, front yard, or car space, giving the impression of spaciousness.
●One-side post stand type, 50cm snow load resistance specification, and Select line roof are not available.

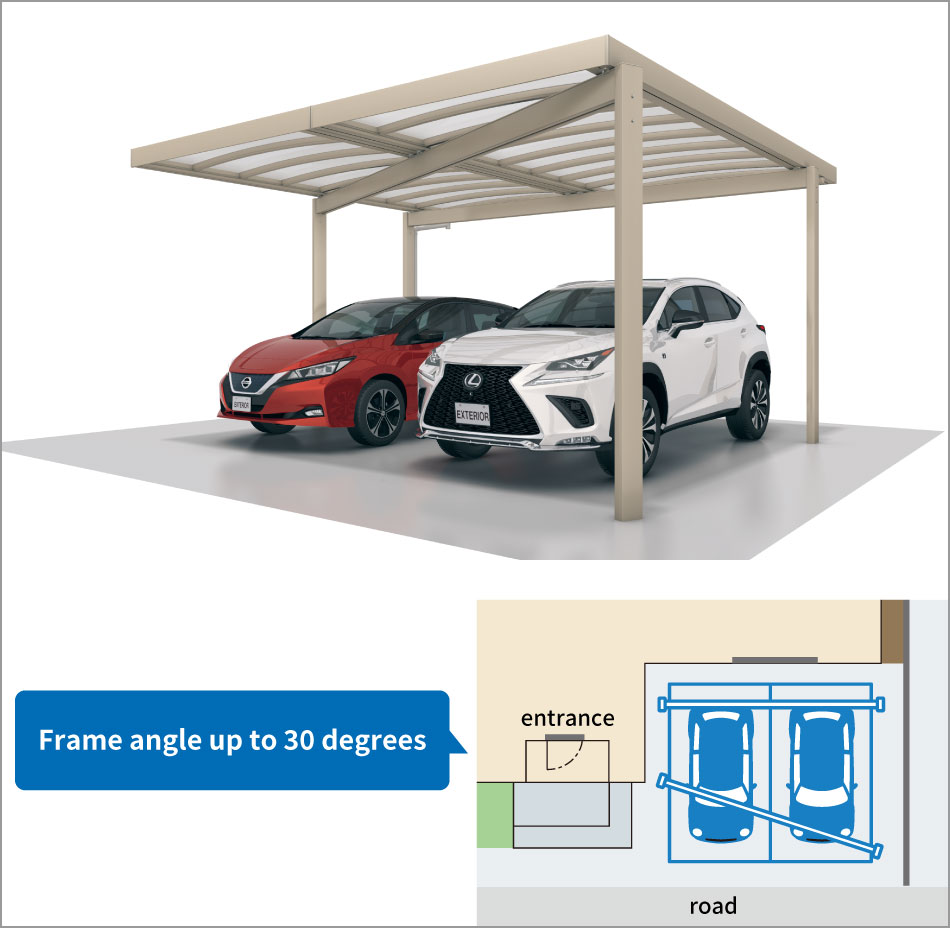

Angle-adjustable installation
Frame angles can be adjusted up to 30°. The front frame can be moved to its maximum angle to allow for smooth movement from the car to the front door.
●If the movement is within the standard installation range, use the frame and roof for the standard installation. If the movement is beyond the range, use the frame for offset frame installation or both ends frame installation type according to the frame position.
●Select line roof is not available.
Both sides + one side post stand type
Both sided and one side post stand frames can be combined. Even in spaces where it is difficult to install posts or where posts get in the way of walking flow, a combination of both sides and one side post stand frames allows for a plan that fits your home.
●Not compatible with 50cm snow load resistance specifications, Select line roof (lattice under beam), and pergola type.

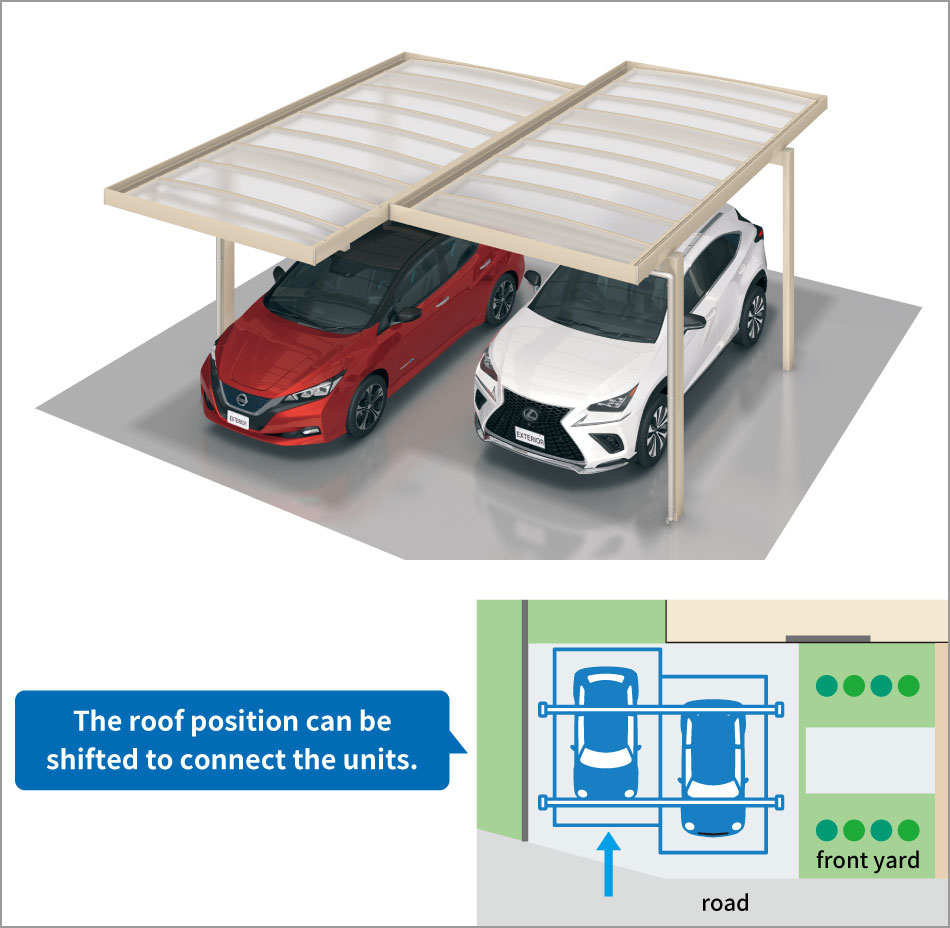

Step connection installation
The roof position can be shifted when connecting. By shifting the position of the roof, it can be installed along the line with the front road and the shape of the building.
●One-side post stand type and Select line roof (lattice under beam) are not available.

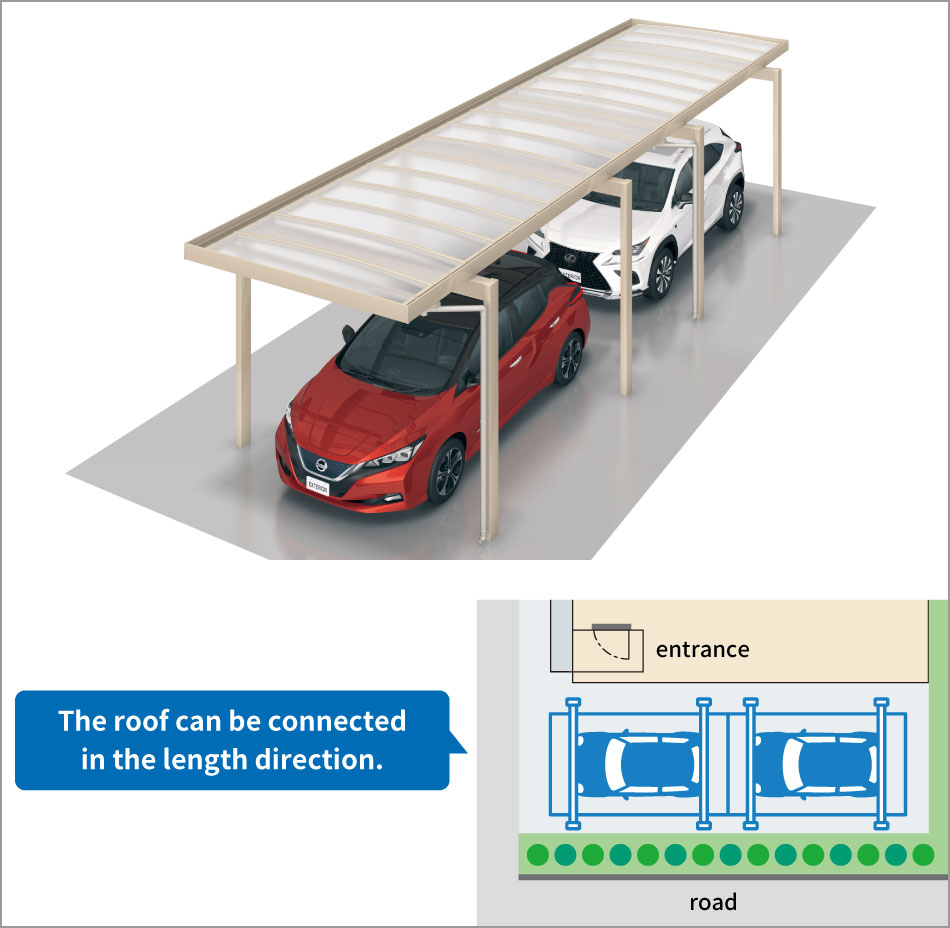

In-line connection
Roofs can be connected in the length direction. Multiple cars can be parked in the length direction. Limited car space can be used effectively.
●Select line roof (lattice under beam) is not available.

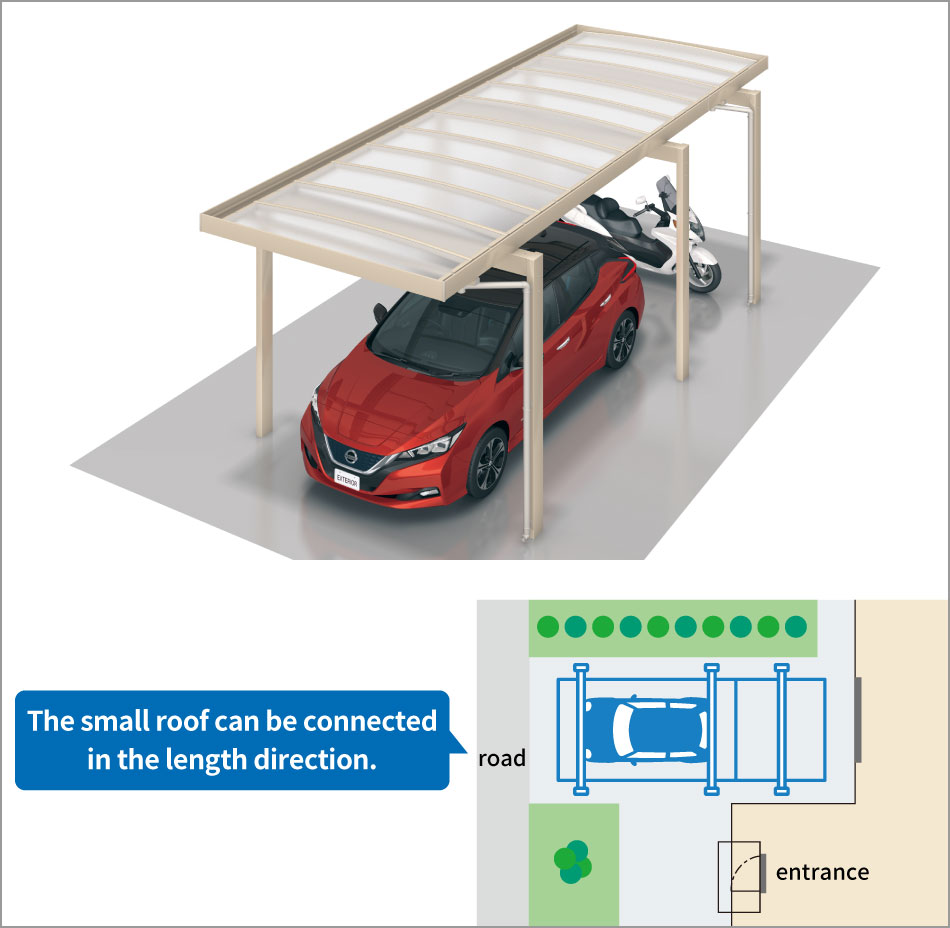

In-line extension
Small size roofs can be connected in the length direction. By connecting small roof sizes, you can create a spacious space even for parking one car, and you can use it as a car space + α, such as a parking space for bicycles and motorcycles.
●50cm snow load resistance specification and Select line roof (lattice under beam) are not available.
Even if you don’t have enough car space, you can use offset foundations (option).
