Product features

MSD-series

Roof on beam type

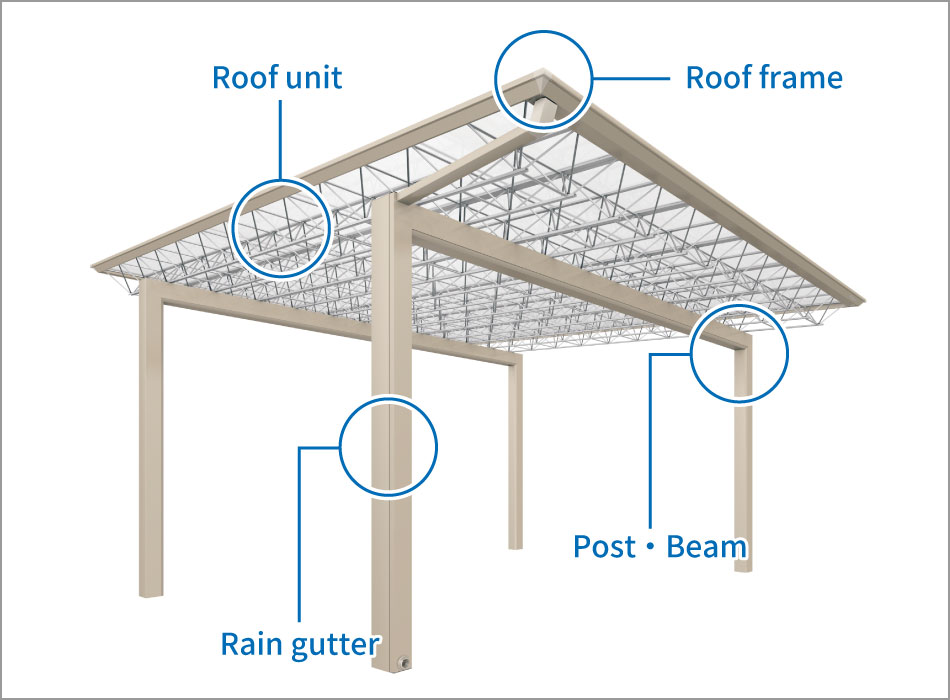

**Design・Structure**
A stable style with a roof on beams. The beautiful lines of the aluminum plate truss structure create a unique roof. The beams have been slimmed down and the posts are covered with material that hides the bolts, giving the structure both strength and a stylish design.

**Maximum width of 12m allows for increased site adaptability!**
Extend beams of up to 12m are available. Posts can be installed around obstacles to suit site conditions, and the frame can be used as a gate, allowing for plans that will not only accommodate car spaces but also the entire façade.

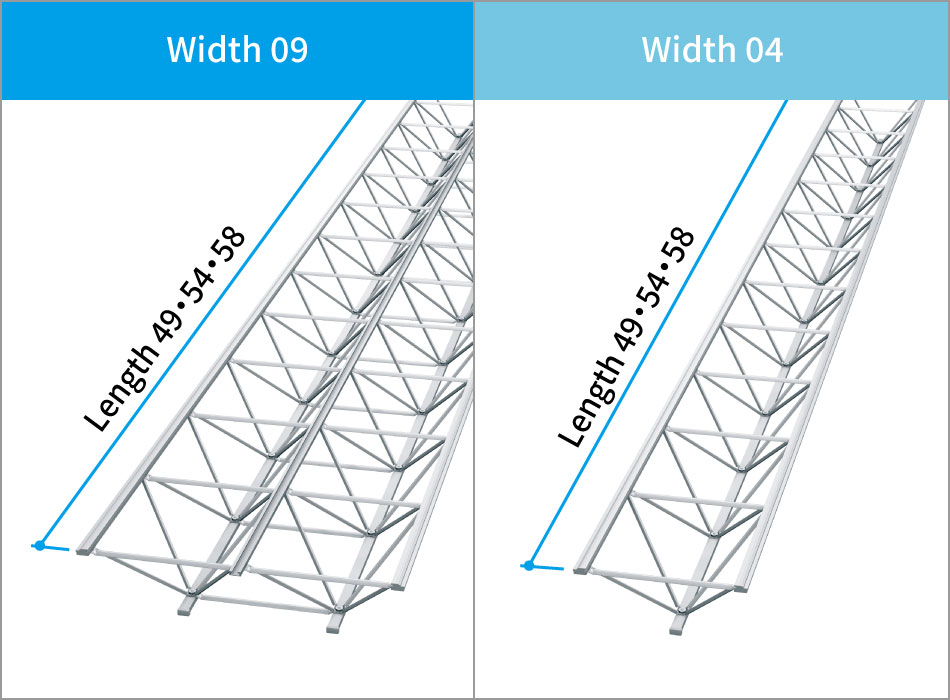

**Roof unit**
A beautiful truss roof is created by combining roof units. We use lightweight and strong aluminum plate trusses. The roof units are available in two widths: 09 (900mm) and 04 (468mm).

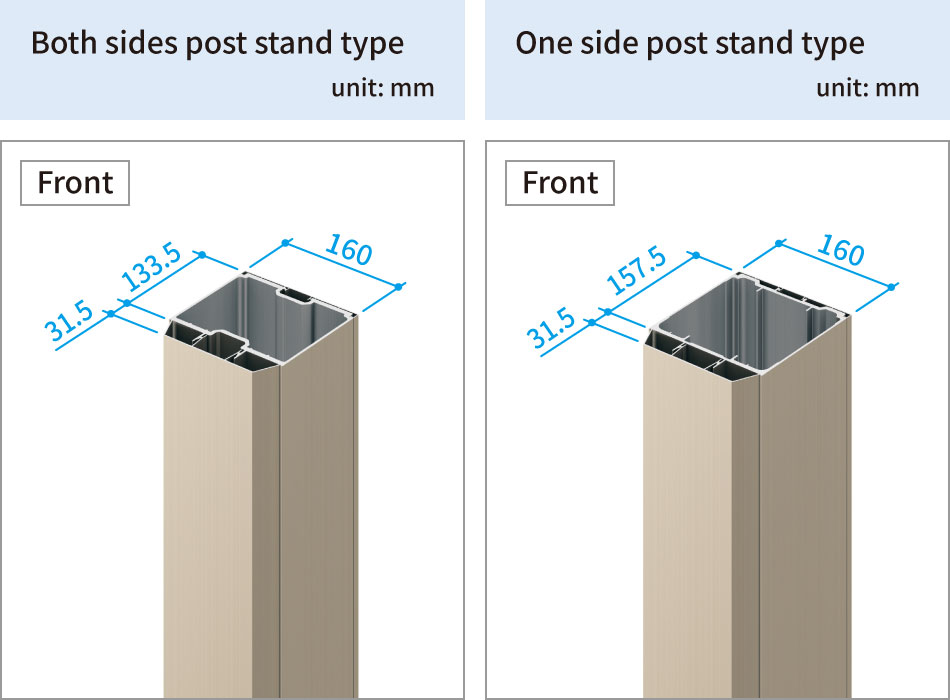

**Post**
The slimmer, noiseless design gives a sophisticated impression.

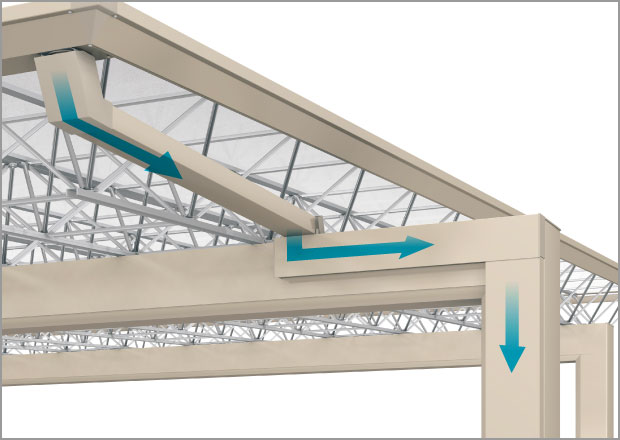

**Rain gutter: Roof frame part**
The rain gutters are made of aluminum and are the same color as the carport body, creating a beautiful design.

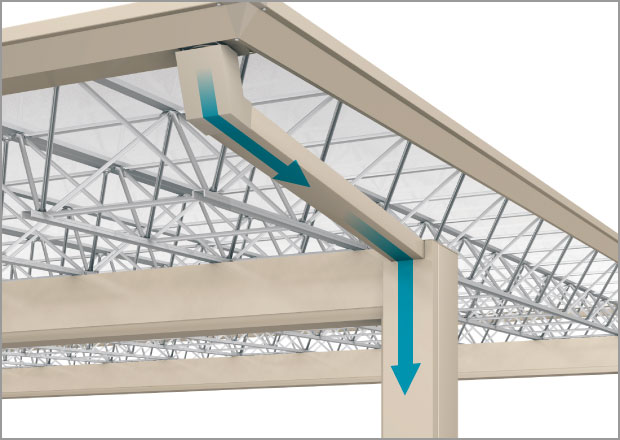

**Rain gutter: Roof frame (extension beam)**

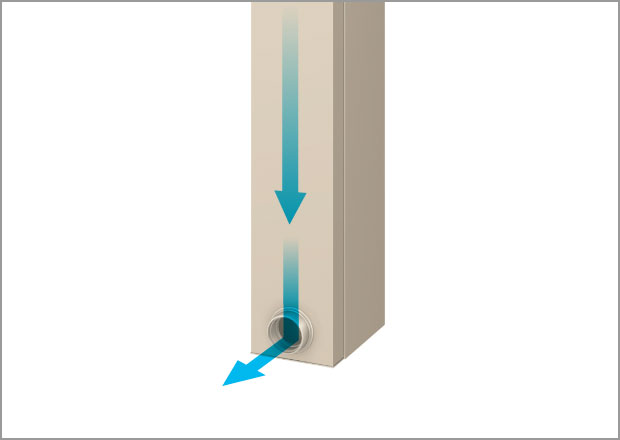

**Rain gutter: Post bottom part**
The gutters are not exposed on the surface, creating a beautiful design.

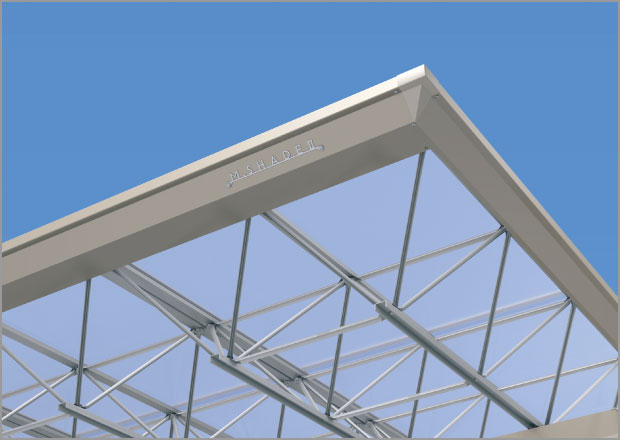

**Roof frame**
This is a smart roof frame that matches the stylish design of the plate truss.

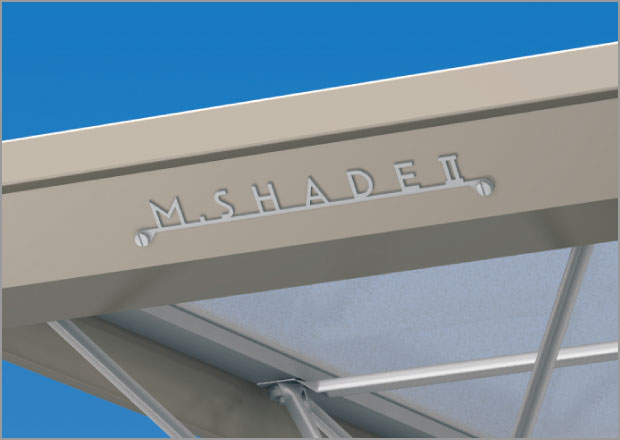

**Emblem**
It is fitted with a stainless steel emblem.

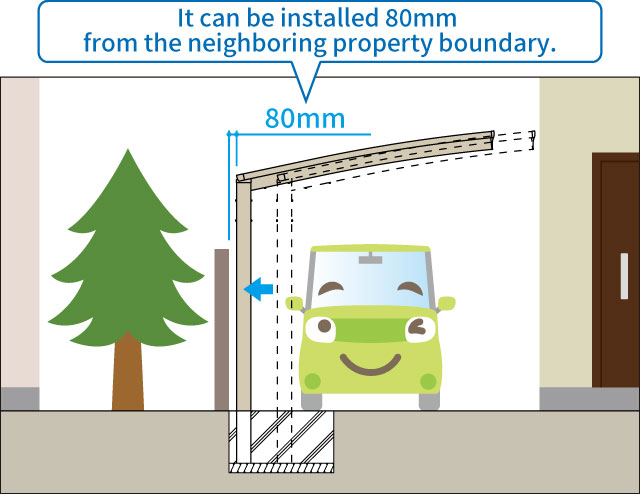

Even if you don’t have enough car space, you can use offset foundations (option).

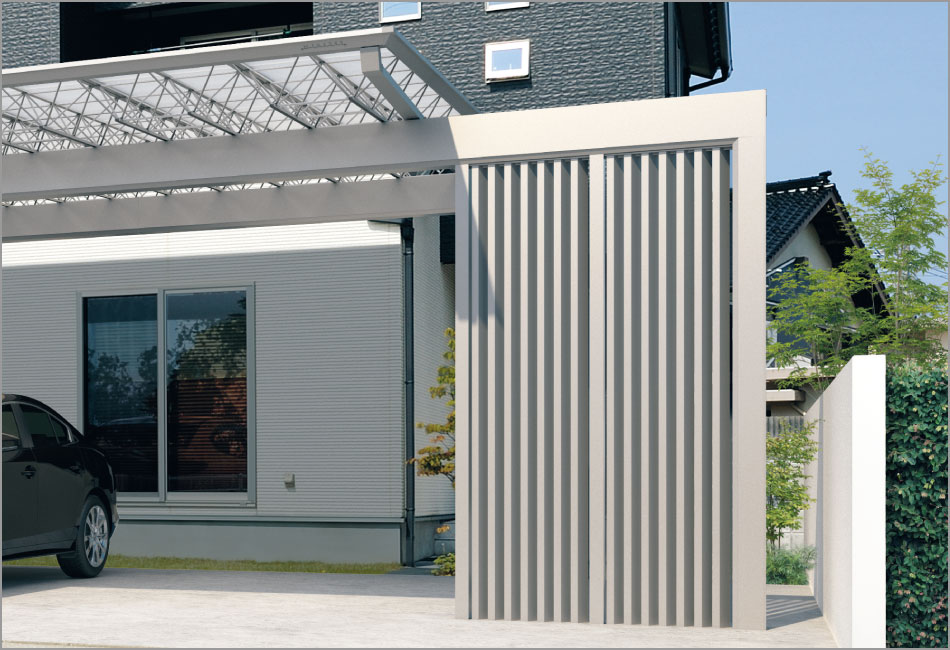

Vertical lattice unit under the beam (option)

This highly designed screen can be installed under the beams of a carport. It can be installed on both sides post stand type.

Vertical lattice

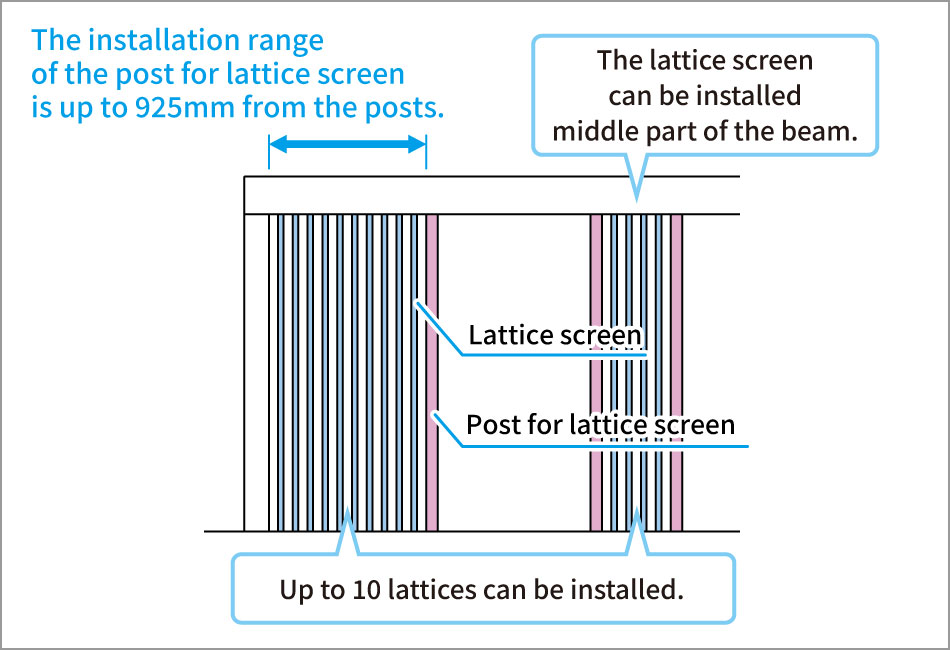

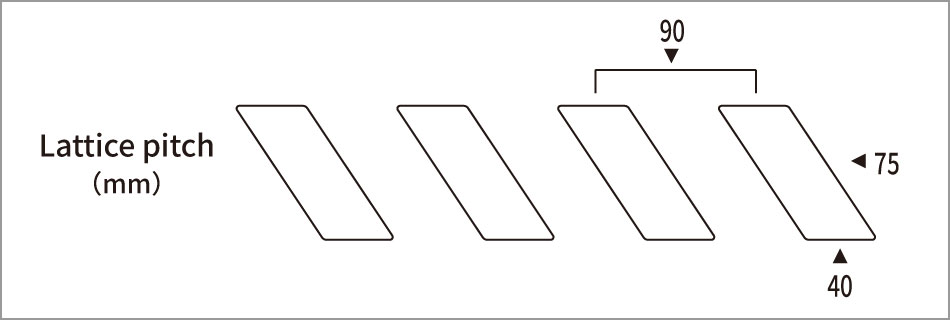

This is an angle lattice set that can be installed under the beams of a carport. By using angle lattices, a semi-privacy type screen is realized. This screen is installed with the post for screen unit. The posts for screen unit have an internal dimension of 925mm or less, and angle lattices can be installed between posts up to 10 times at 90mm pitch.

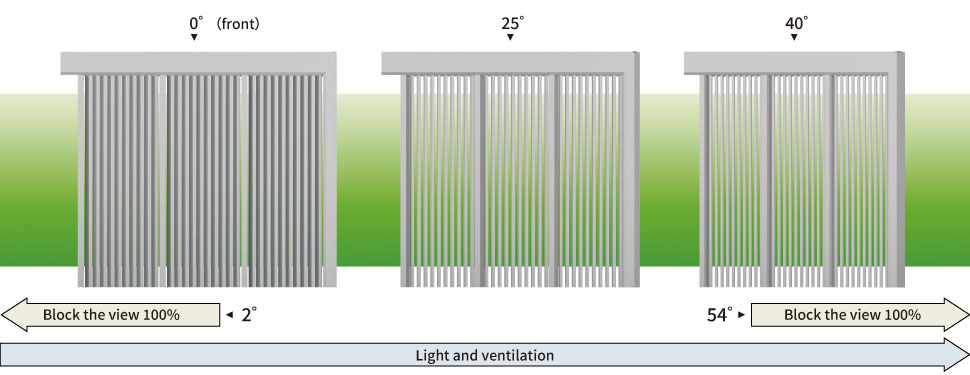

Type of lattice screen
It blocks views from diagonal directions while allowing in just the right amount of light and ventilation, and you can enjoy the changes in the design depending on the angle from which it is viewed.
