Dimensional Drawings

USN-series

One Side Post Type

【Roof suspended from beam】

Roof suspended from beam

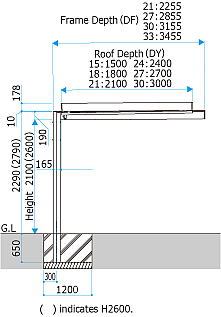

【Roof placed on beams】

Roof placed on beams

【Roof suspended from beam※1】

　※1.The dimensions are as same as Roof placed on beams.

Length direction

Roof suspended from beam
Roof suspended from beam

In-Line Short Extension

In-Line Short Extension

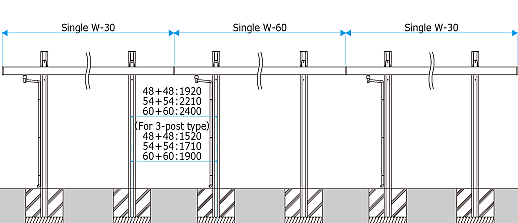

In-Line Connection

In-Line Connection
page top

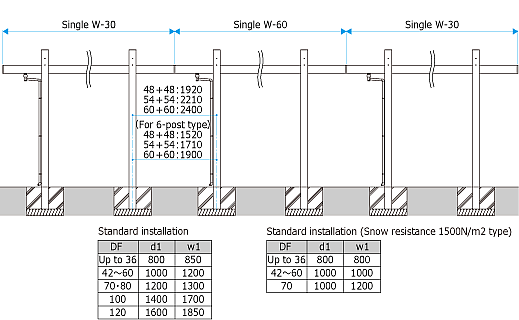

Both Sides Post Type

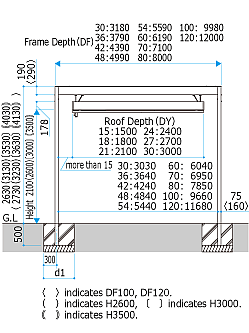

【Roof suspended from beam】

Roof suspended from beam

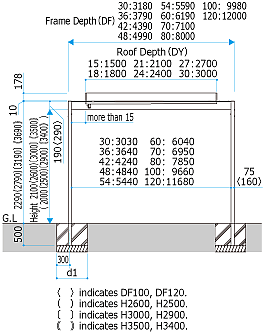

【Roof placed on beams】

Roof placed on beams

【Roof suspended from beam※1】

　※1.The dimensions are as same as Roof placed on beams.

Length direction

Roof suspended from beam
Roof suspended from beam

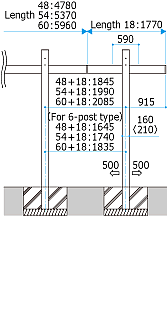

In-Line Short Extension

In-Line Short Extension

In-Line Connection

In-Line Connection
