It reduces rust and dust, and lasts the wax effect of the car.
It makes maintain the car easily.
When getting in and out, you don't have to worry to get wet in the rain.
You can load baggage into a car smoothly.
It reduces frost and snow. You don't have to worry to remove the frost and snow in the busy morning.
It reduces ultraviolet rays that bleach the car body and sheets.
It protects the car from the direct sunlight, and reduces the temperature car rise.
Please choose the product that best fits the amount of snow to be expected in your region.
We offer products of several grades varying in the maximum amount of snow cover between 20cm and 200cm.
The weight of snow greatly varies depending on the state of snow.
Compared with new-fallen snow, the weight of the snow increases with time after snowfall and also after repeated snowfalls.
The figures given are rough estimates.
Please also take into account the impact of the wind at the installation site.
The wind pressure resistance of each carport is ranked based on the standard wind speed stipulated in the Japanese Building Standards Act.
Choose the material of the roof panels in accordance with your needs in terms of both performance capability and taste.
Cut out UV rays 100% and has a strong impact resistance 250 times higher than glass. Since it does not harden at low temperatures, it is suitable for use in cold climates.
When looking from the sun side, the surface reflects in sunlight, therefore the color of the panel looks different from the ground side view.
The embossed surface is diffusing sunlight and reducing heat ray.
The color of panel looks different from the angle of view.
Non-transparent black polycarbonate suppress the rise in temperature inside the car.
The panel absorbs solar heat rays (infrared rays) and cut out UV rays 100%.
Aluminium alloy panels protect the car from direct sunlight and solar heat.
Both surfaces are coated with a polyester resin baked-on coating.

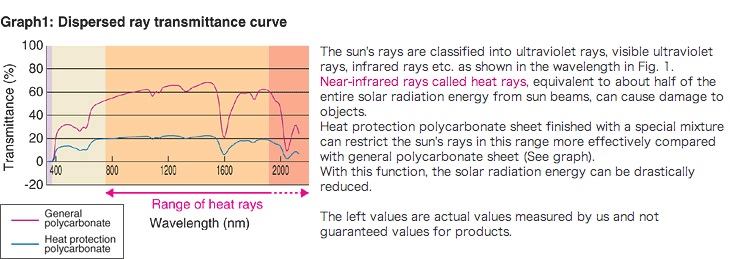

The sun’s rays are classified into ultraviolet rays, visible ultraviolet rays, infrared rays etc. as shown in the wavelength in Fig. 1.
Near-infrared rays called heat rays, equivalent to about half of the entire solar radiation energy from sun beams, can cause damage to objects.
Heat protection polycarbonate sheet finished with a special mixture can restrict the sun’s rays in this range more effectively compared with general polycarbonate sheet.
With this function, the solar radiation energy can be drastically reduced.
|
Panel Type Performance |
Polycarbonate | Black Polycarbonate |
Heat Protection Polycarbonate |
|||
|---|---|---|---|---|---|---|
| Brown Tinted (BR) |
Blue Tinted (AO) |
Clear Mat (SI) |
Matt Black (KP) |
Blue Smoke (AO) |
Clear Mat (SI) |
|
| Heat Rays（IR）Cut % | 45% | 40% | 16% | 72% | 83% | 70% |
| Visible Rays Transmissivity % | 34% | 20% | 88% | 0% | 11% | 76% |
| UV Rays Cut % | 100% | 100% | 100% | 100% | 100% | 100% |
|
Panel Type Performance |
Sun Direct | Polycarbonate (BR) |
Black Polycarbonate | Heat Protection Polycarbonate (AO) |
|---|---|---|---|---|
| Car inside | 65.8℃ | 50.5℃ | 44.4℃ | 44.1℃ |
| Steering wheel（surface） | 85.6℃ | 60.4℃ | 44.6℃ | 48.2℃ |
| Dashboard（surface） | 92.7℃ | 66.5℃ | 45.2℃ | 50.4℃ |
Test Condition : JAPAN / Summer / Fine Day
Ambient Temperature : 34℃～36℃
You can choose from a large number of convenient options.
