Gate Details

Design Variations

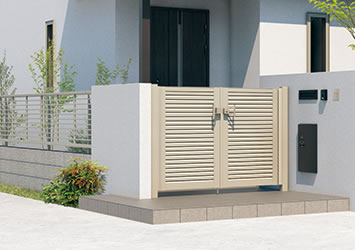

Double Door
Double Door

A gate door consisting of two single doors on the left and right separated in the middle. One side stays locked with a pin mechanism, so normally only one side would be used to enter and exit.

Combination Door
Combination Door

A gate door consisting of two single doors, with one larger than the other.
The sizes of both sides can be chosen based on the dimensions of your entranceway.

Single Door
Single Door

A gate door consisting of a single door only. Perfect for a side/back entrance or other narrow entranceway.

Connected Gate
Connected Gate

A gate door consisting of three or four doors connected together. This model is perfect for the entrance into your carport or any other place with a wide entranceway.

page top

Details

Double Door
Combination Door
Single Door
Single Door
Connected Gate
Connected Gate
page top

Gate Locks

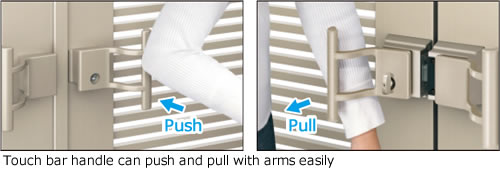

Touch Lock

Outside: Dimple Lock
  • Utilizes a touch lock mechanism; simply push the lever from the outside or pull the lever from the inside.
  • The keyhole is shaped so that the key can easily be inserted, and is surrounded by glow in the dark plastic to make finding it easy at night.
Glow in the Dark Plastic

Uses a dimple key, which is hard to pick and difficult to duplicate.

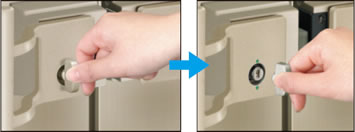

Removable Thumb-turn Design

Inside: Removable Thumb-turn Lock
  • On the side of your home, depending on the usage conditions, a removable thumb-turn lock can be used. (At the time of manufacture, the door will come shipped with a thumb-turn lock. However, at the time of installation this can be removed and replaced with a simple "coin" type lock if necessary.) “Open/Locked” stickers can also be placed on the lock upon request for easy confirmation of whether or not the gate is locked or open.
Inside: Dimple Lock

Inside/Outside Dual Dimple Lock System

  • We can install dimple locks on both the inside and outside of the gate for even more security.
Double Door

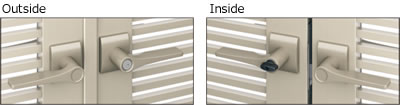

Lever Lock

Outside: Dimple Lock
  • Picture is of the type of lock that you simply push down the lever to open the door.
Glow in the Dark Plastic
Outside: Dimple Lock

Uses a dimple key, which is hard to pick and difficult to duplicate.

Lever Lock

Outside: Dimple Lock
Outside: Dimple Lock
page top

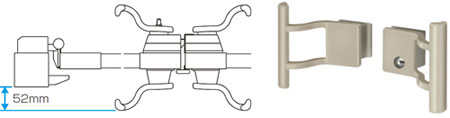

Adjustable Hinges

Elbow Hinge [75mm]

Elbow Hinge for Connected Gate [105mm]

  • The forward/rear and left/right location of your gate door can be slightly adjusted when it is being installed on-site. Also, by making the lower shaft of the gate longer we have made it much easier to mount.
