Dimensional Drawings

KDR-series

Dimensions shown in parentheses are when long post are used.

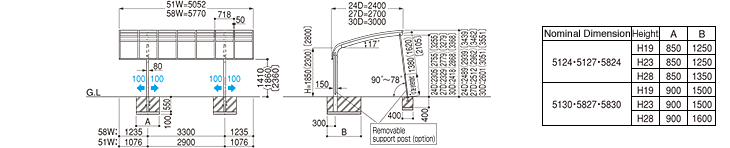

Single Basic

Single Basic

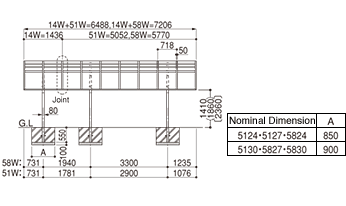

In-Line Short Extension

In-Line Short Extension

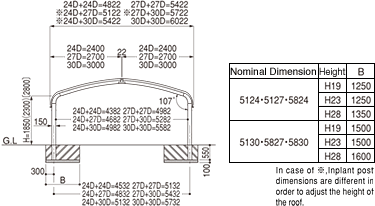

M-Connection

M-Connection

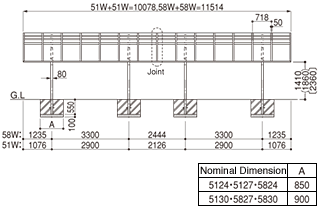

In-Line Connection

In-Line Connection

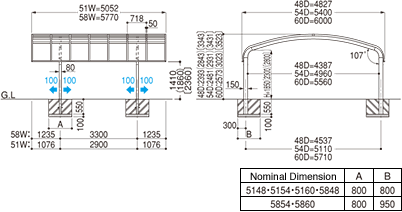

Wide Beam

Wide Beam

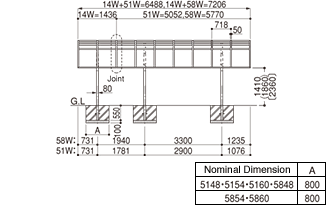

Wide Beam In-Line Short Extension

Wide Beam In-Line Short Extension

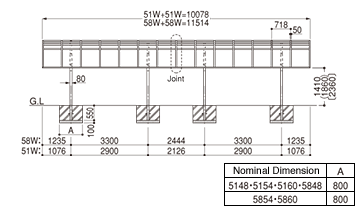

Wide Beam In-Line Connection

Wide Beam In-Line Connection

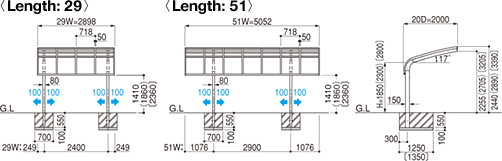

Mini

Mini

Post Support

Post Support
